Layered Drone Detection Capability
RF, Radar and Optical Systems Working Together
Technology Considerations
The technologies referenced on this page are representative examples of layered drone detection capability approaches currently available within the market. Counter Drone Solutions does not advocate a single technology, manufacturer or sensor approach. Capability selection should be based on operational requirements, environmental conditions, legal considerations and validated threat assessment outcomes
Layered Drone Detection
No single drone detection technology provides complete coverage in every operating environment.
Different sensors detect different things. RF systems may detect drone-related radio frequency activity. Radar may detect the physical movement of an object through airspace. Optical and thermal cameras may assist with visual confirmation and tracking.
A layered drone detection approach combines multiple sensor types to provide a more complete operational picture.
Counter Drone Solutions provides independent advice on layered drone detection capability, including operational suitability, limitations, integration considerations and evidence-based capability planning.
Why Layered Detection Matters
Drone detection is complex. A single sensor may provide useful information, but it may also have important limitations. For example:
• RF detection may identify drone control or telemetry signals, but may not detect all drone types or autonomous flights.
• Radar may detect and track the physical movement of a drone, but may require support to classify what has been detected.
• Optical systems may provide visual confirmation, but usually require line of sight and may be affected by weather, lighting and distance.
Layered detection helps reduce reliance on one sensor type and supports more informed operational decision-making. The objective is not simply to detect something in the air.
The objective is to understand:
• What has been detected,
• Where it is,
• How it is moving,
• Whether it presents an operational concern, and
• What response pathway may be appropriate.
RF Detection Layer
RF detection refers to the use of radio frequency monitoring technology to detect drone-related signals.
Depending on the system and operating environment, RF detection may assist with:
• Detecting drone control or telemetry signals,
• Identifying known drone types or manufacturers,
• Detecting controller activity,
• Estimating direction or location, where supported,
• Understanding repeated drone activity, and
• Supporting operational reporting.
RF detection can be particularly useful as an early warning and awareness layer.
However, RF detection should not be viewed as a complete solution by itself. Capability may vary depending on drone type, firmware, encryption, transmission method, RF congestion, terrain, sensor placement and software support.
Radar Detection Layer
Radar detection refers to the use of radar technology to detect and track the physical movement of aerial objects.
Radar may assist with:
• Detecting drones that are not transmitting identifiable RF signals,
• Tracking low, slow and small aerial objects,
• Providing range and bearing information,
• Supporting altitude or three-dimensional tracking, where supported,
• Cueing optical cameras toward a target, and
• Improving wider-area situational awareness.
Radar can be particularly useful where a site requires persistent monitoring, wider-area coverage or altitude awareness.
However, radar may also be affected by terrain, buildings, clutter, weather, sensor placement and false alarms from birds or other moving objects. Radar may detect an object, but additional layers may be required to assist with confirmation and classification.
Optical and Thermal Tracking Layer
Optical systems provide visual confirmation and tracking.
These may include electro-optical cameras, infrared or thermal cameras, pan-tilt-zoom systems, automated tracking and video analytics.
Optical capability may assist operators to:
• Confirm whether an object is a drone,
• Visually classify the drone type,
• Track movement,
• Assess visible payload indicators,
• Reduce false alarm impact,
• Support incident reporting, and
• Provide visual evidence for post-incident review.
Optical systems are often most effective when cued by another sensor layer, such as RF detection or radar.
However, optical performance may be affected by line of sight, lighting, weather, distance, drone size, camera placement, background clutter and operator workload.

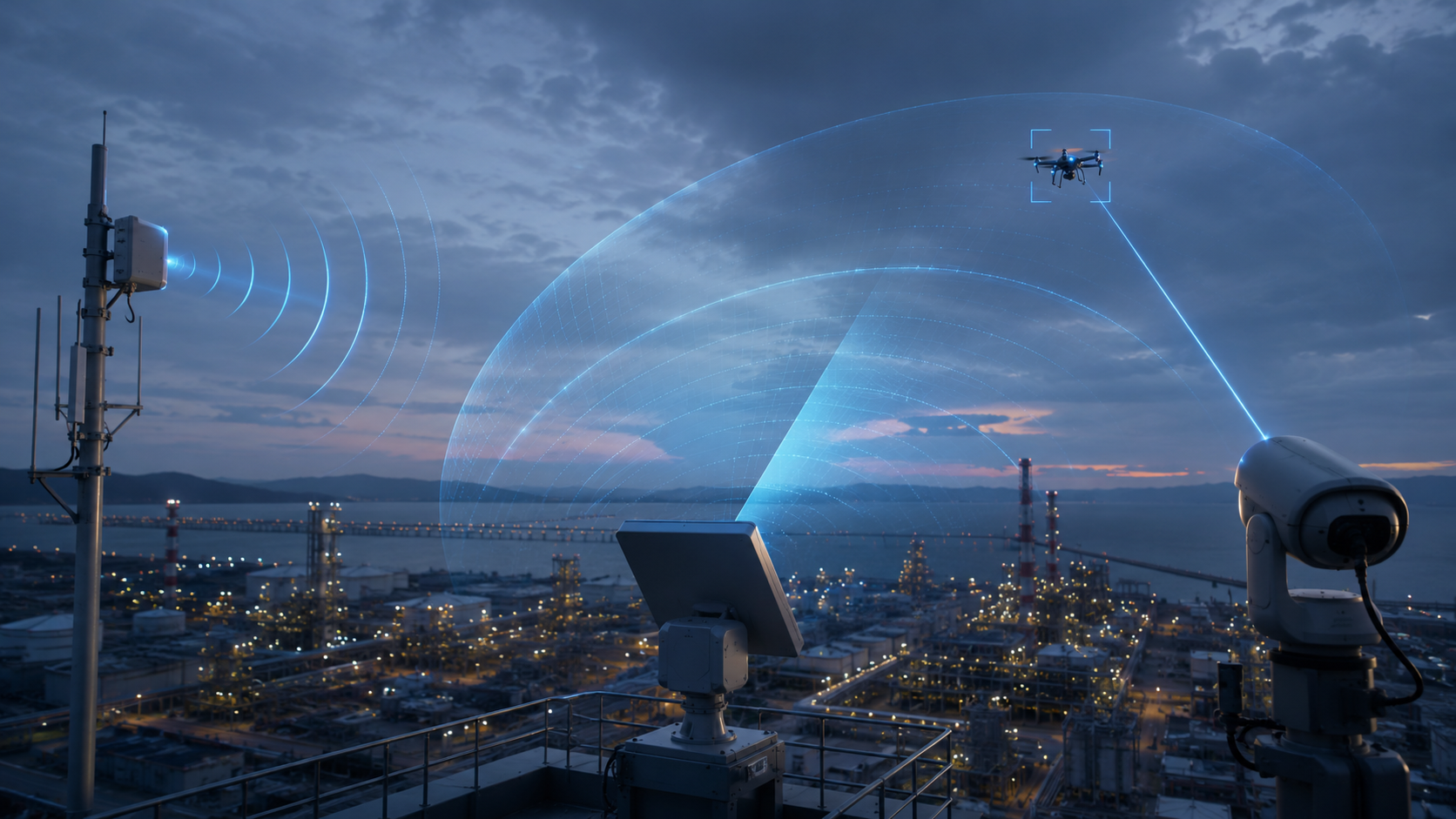

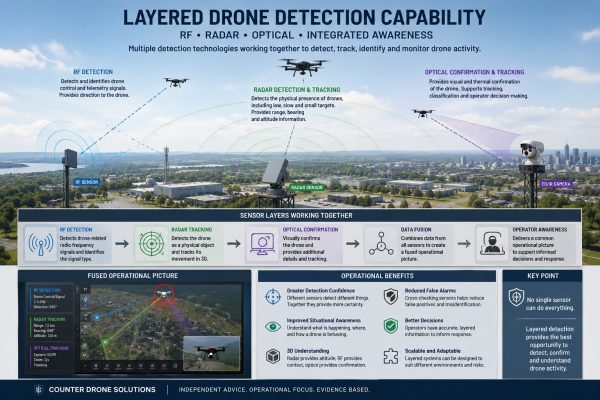

How the Layers Work Together
Layered drone detection is most valuable when the sensor layers support each other.
A typical layered workflow may involve:
- RF detection identifies drone-related signals or controller activity.
- Radar detects and tracks a physical object moving through airspace.
- Optical or thermal cameras provide visual confirmation and tracking.
- Command-and-control software combines sensor information into a common operational picture.
- Operators assess the activity and determine whether escalation or response is required.
This approach helps improve confidence and reduce assumptions.
For example, RF detection may suggest drone activity is present. Radar may assist with understanding movement and altitude. Optical tracking may then confirm whether the object is a drone and support operator decision-making.
How Sensor Layers Support Decision-Making
Layered Detection and Threat Assessment
Layered detection should ideally be informed by an operational drone threat assessment. Before investing in significant counter-drone capability, organisations should understand whether drone activity is actually occurring, when and where activity occurs, whether activity is repeated or isolated, and which sensor layers are most appropriate for the environment.This supports evidence-based decision-making before committing to major technology expenditure.
Operational Benefits
A layered detection approach may provide:
• Improved detection confidence,
• Reduced reliance on a single sensor,
• Improved situational awareness,
• Better understanding of drone movement and behaviour,
• Reduced false alarm impact,
• Visual confirmation of detections,
• Improved incident reporting,
• Support for geospatial analysis,
• Better evidence-based decision-making, and
• A stronger foundation for response planning.
Layered detection is particularly relevant for environments where drone activity may create operational, safety, security or reputational risk.
Operational Limitations
Layered detection improves operational awareness, but it does not remove all limitations. System performance may be influenced by:
• Terrain and buildings,
• RF congestion,
• Sensor placement,
• Line of sight,
• Drone type and operating mode,
• Weather and lighting,
• Integration quality,
• Operator training,
• False alarms,
• Software configuration, and
• Legal or operational constraints.
A layered system should be designed around the operational environment, not simply assembled from available technologies. No single sensor or combination of sensors should be assumed to provide complete detection coverage in all circumstances.
Legal Considerations
Detection technologies are generally less legally sensitive than active mitigation or disruption technologies because they do not physically or electronically interfere with the drone. However, layered detection systems may still raise governance considerations, including:
Data collection, privacy, video recording, signal monitoring, data retention, access controls, evidence handling, incident reporting, and integration with security operations.
Organisations should consider how detection data will be collected, stored, accessed, protected and used. Counter Drone Solutions does not provide legal advice. Clients should obtain independent legal and regulatory advice where required.
