Skywall Auto – Automatic Drone Capture System 2020-01-17T09:18:37+00:00

Skywall Auto – Automatic Drone Capture System

Counter Drone Solutions is the exclusive distributor in Australia and New Zealand for the Skywall products.

Counter Drone Solutions
Skywall300 Counter Drone Solutions

Response Vehicle

Vehicle Mounted Capture System

Concealed Under Canopy

What is the Skywall Auto Automatic Net Capture System?

The Skywall Auto, formerly the SkyWall300,  is an automatic system that can physically capture a drone in a specifically designed ‘drone entangling’ net. It uses compressed air to launch a projectile up to the target drone after the system has automatically identified and tracked it. SkyWall300 can be used as a standalone drone capture system but can be integrated with a drone detection and security system to offer a highly capable and easy to operate counter drone solution. A single SkyWall300 system can protect a small area and multiple systems can be networked and deployed to protect a large site. SkyWall300 is an autonomous system that is remotely operated and rapidly captures multiple targets in accurately-delivered nets, deployed in conjunction with electronic counter-measures for a layered defence, or in environments where electronic attack cannot be used. SkyWall300 launches a projectile up to the target drone after the system has autonomously acquired and tracked it using world leading edge AI technology. The system can be permanently installed on a building or vehicle mounted for a mobile deployment.

Response Vehicle

It can be used as a standalone drone capture system or be integrated with a drone detection and security system to offer a highly capable and easy to operate counter drone solution. A single SkyWall300 system can protect a high-value asset or multiple systems can be networked and deployed to protect a large site.

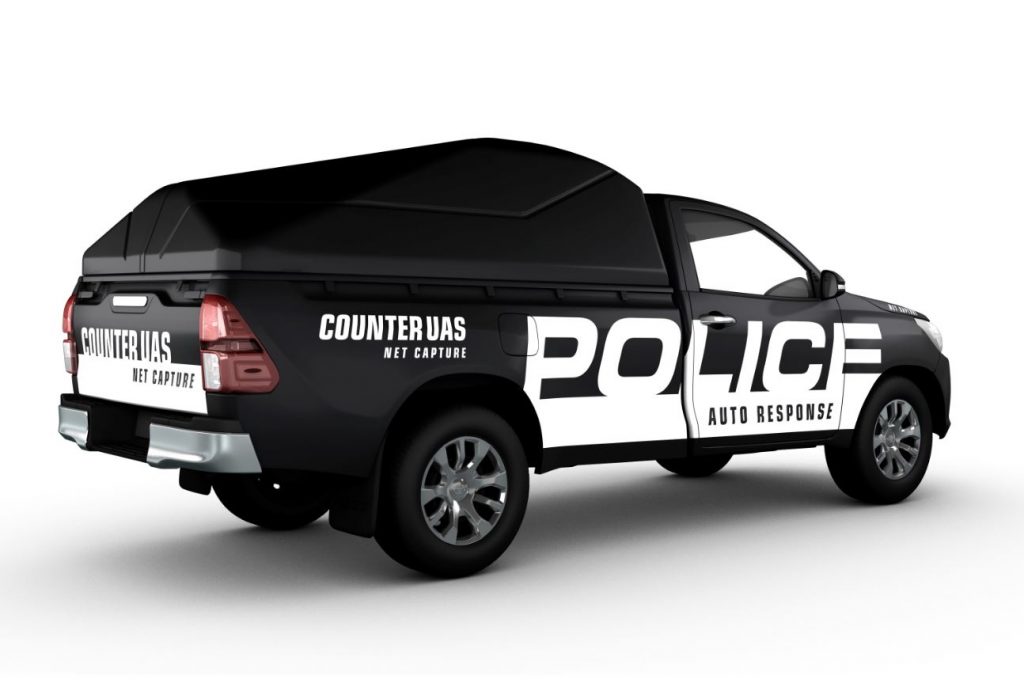

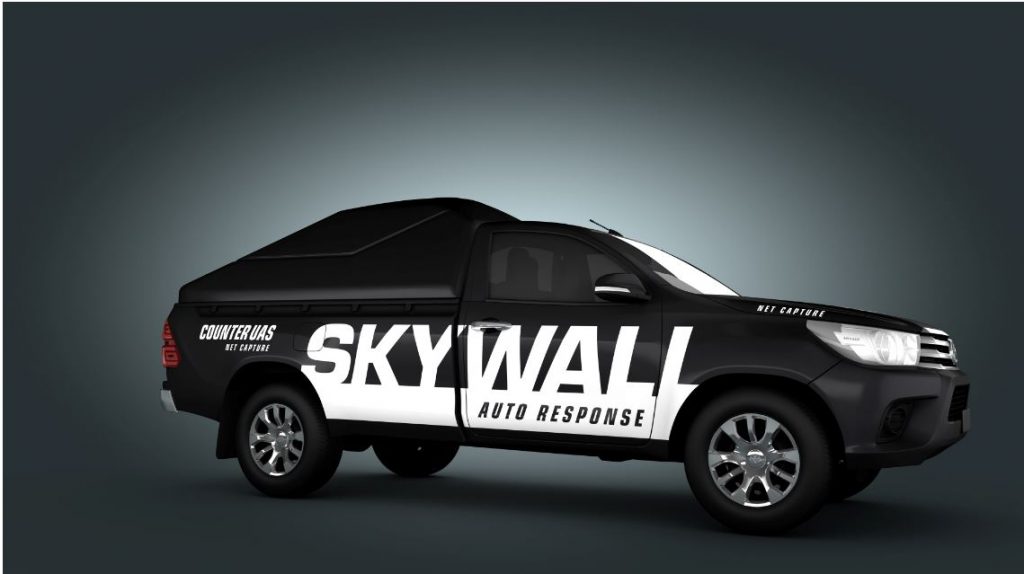

The Skywall300 is the world’s first vehicle mounted drone capture system, SkyWall Auto Response. The system provides security forces with a way of protecting a large area using the operationally proven SkyWall net capture technology, already deployed at critical national infrastructure around the world. SkyWall Auto Response looks like any typical commercial vehicle at first sight as the drone capture system is hidden under rapidly deployable covers, ensuring the system remains discreet when not in use. When a drone threat has been detected, the vehicle can be manoeuvred quickly and the SkyWall net capture system is automatically deployed from under the cover.

Benefits of the Skywall300

  • Physical Drone Capture
    • No electronic countermeasure
    • Predictable outcome
  • Integration for Fully Autonomy
    • Automatic system that can be remotely operated
    • Vehicle or building mount
  • Long Range Net Capture
    • Multiple targets engaged rapidly
    • AI computer vision tracking
  • Low Collateral Damage Risk
    • Controlled descent using a parachute
    • All projectile parts remain attached
    • Targeted counter-measure aiming and release

Projectiles

SkyWall projectiles are re-useable and can carry a range of counter measures. The SP40 includes a parachute which controls the descent of a captured drone.

This minimises the risk of any collateral damage and keeps the drone intact. It allows forensic investigation and enables identification of the operator.

If the drone eludes capture, the projectile deploys regardless and controls the safe descent of the tethered components.

Projectiles

  • Counter-measure: Net only
  • Projectile Type: Drone capture
  • Targeting: Pre-programmed by the SkyWall targeting system
  • Compatibility: SkyWall100 and SkyWall300 launchers
  • Counter-measure: Net and parachute
  • Projectile Type: Drone capture
  • Targeting: Pre-programmed by the SkyWall targeting system
  • Compatibility: SkyWall100 and SkyWall300 launchers
  • Counter-measure: Net and parachute
  • Projectile Type: Drone capture payload
  • Targeting: Not included
  • Compatibility: Specific integration required
  • Counter-measure: Not included
  • Projectile Type: Training projectile
  • Targeting: Not required
  • Compatibility: SkyWall100 and SkyWall300 launchers
  • Counter-measure: Not included
  • Projectile Type: Training projectile
  • Targeting: Not required
  • Compatibility: SkyWall100 and SkyWall300 launchers

An Integrated Part of Your Mission

Skywall300 Counter Drone Solutions
Skywall300 Counter Drone Solutions
Skywall300 Counter Drone Solutions
Skywall300 Counter Drone Solutions
Skywall300 Counter Drone Solutions

Skywall Information Sheets

Click on the below images to download an information sheet.

Skywall 2018 Brochure

OpenWorks Engineering

Skywall300 Brochure

OpenWorks Engineering

Skywall Projectile Brochure

OpenWorks Engineering

About OpenWorks Engineering

OpenWorks Engineering is a hi-tech product company developing world-leading security and counter terrorism products. OpenWorks has developed an award winning and innovative drone capture system, named SkyWall.

The system offers government authorities and private security organisations the capability to protect the public, VIPs, prisons and critical national infrastructure from the threats posed by commercially available drones.We are very proud to have supported a large number of high-profile security missions with our SkyWall products, working to mitigate the threats posed by drones at large public events on the national stage.
